At a glance

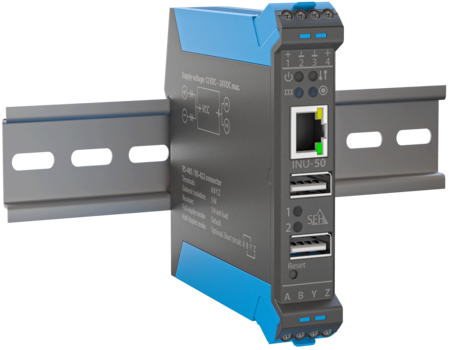

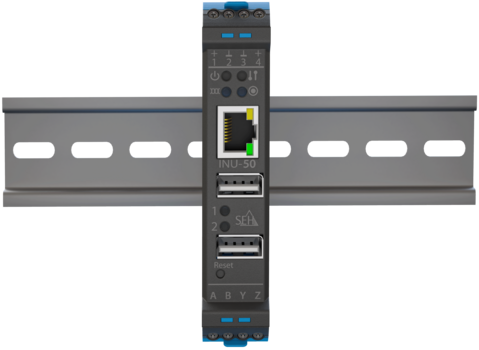

The INU-50 is a state-of-the-art serial and USB device server specifically designed for demanding industrial environments. It provides reliable network connections for USB and serial devices such as RS-422 and RS-485, even under extreme conditions. With an extended temperature range of -20°C to 70°C, redundant power supplies and comprehensive security features, the INU-50 is the perfect choice for companies working in Industry 4.0 and IIoT environments.

  • Support for USB and serial RS-422/RS-485 devices
  • Temperature range: -20°C to 70°C

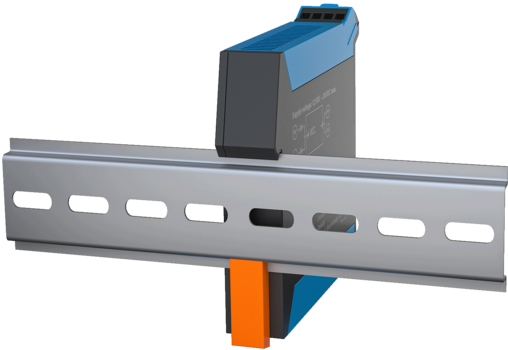

  • Easy installation on DIN rail
  • Encrypted point-to-point connections
  • Compatible with server-based and virtualized environments
  • Fit for IIoT and Industry 4.0

Description

  • Robust and reliable: The INU-50 was specially developed for harsh environments and performs trouble-free even under extreme conditions. We give up to 5-year guarantee on this!
  • Flexible integration: Thanks to support of IPv4, IPv6, VLAN and WebDAV, the INU-50 can be seamlessly integrated into existing networks.
  • Security at the highest level: The encrypted point-to-point connection protects against unauthorized access and ensures that your data remains safe.
  • Maximum flexibility: The INU-50 supports a variety of operating systems and is suitable for a wide range of applications in industry, production and logistics.
  • High-end support & updates: Technical support is free worldwide and works via WebDAV. We also guarantee you regular updates.
  • Future-proof: Thanks to regular software updates and comprehensive compatibility with modern IIoT standards, the INU-50 remains ready for use in the long term.

The INU-50 is a powerful device server for industrial application scenarios. With its ability to integrate serial and USB devices safely and reliably into networks, it offers maximum flexibility for a wide range of applications. Thanks to its robust design, it is ideal for environments with extreme temperatures and can be easily installed on the DIN rail. With support for redundant power supplies and comprehensive monitoring and notification functions, the INU-50 ensures smooth operation even in critical environments.

In addition, the INU-50 offers modern security functions such as encrypted point-to-point connections, certificate management and authentication according to the 802.1X standard, making it the ideal choice for companies that have the highest data protection and security requirements. Seamless integration into server-based and virtualized environments as well as support for all common operating systems make the INU-50 the optimal solution for Industry 4.0.

Tech Specifications

Features

  • Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT)
  • 2 × USB 2.0 ports (HighSpeed)
    • USB data throughput: up to 25 MB/s if one device is connected
  • VLAN (802.1Q)
  • SEH UTN Manager (connection management) for:
    • Microsoft Windows (32/64-Bit; Windows 10 or later, Windows Server 2016 or later)
    • macOS: macOS 12 (Monterey), 13 (Ventura), 14 (Sonoma)
    • Linux (Ubuntu 22.04, Debian 12, Oracle 9, CentOS Stream 9, Open-SUSE Leap 15.5)
  • SEH Product Manager (network device management) for:
    • Microsoft Windows (32/64-Bit; Windows 10 or later, Windows Server 2016 or later)
    • macOS 12 (Monterey), 13 (Ventura), 14 (Sonoma) or later
  • User-friendly configuration, administration and maintenance via web browser
  • Free updates and worldwide support

Security

  • Encryption: TLS 1.0/1.1/1.2/1.3, HTTPS
  • Authentication: 802.1X (EAP-MD5, EAP-TLS, EAP-FAST, EAP-TTLS, PEAP)
  • Certificate management: self-signed certificate, certificate request, CA certificate, PKCS#12 certificate, S/MIME certificate
  • SNMPv3
  • TCP port access control
  • Device access control (password protection, session login)
  • Temperature
    • -20°C to +60°C (operation at full load on both USB ports)
    • -20°C to +70°C (operation with low workload)

Extras

UTN Manager

UTN Manager is a custom developed SEH software for all UTN products. Access and manage all USB devices connected to the UTN product via UTN Manager. UTN Manager offers a variety of features and actions to simplify and customize the use of your USB device.

Additional Information

Order Details

  • M07220 (EU/US)

Downloads

To download all important updates, manuals and tools for this product please click the following button.


 Documentation, Firmware and Tools
